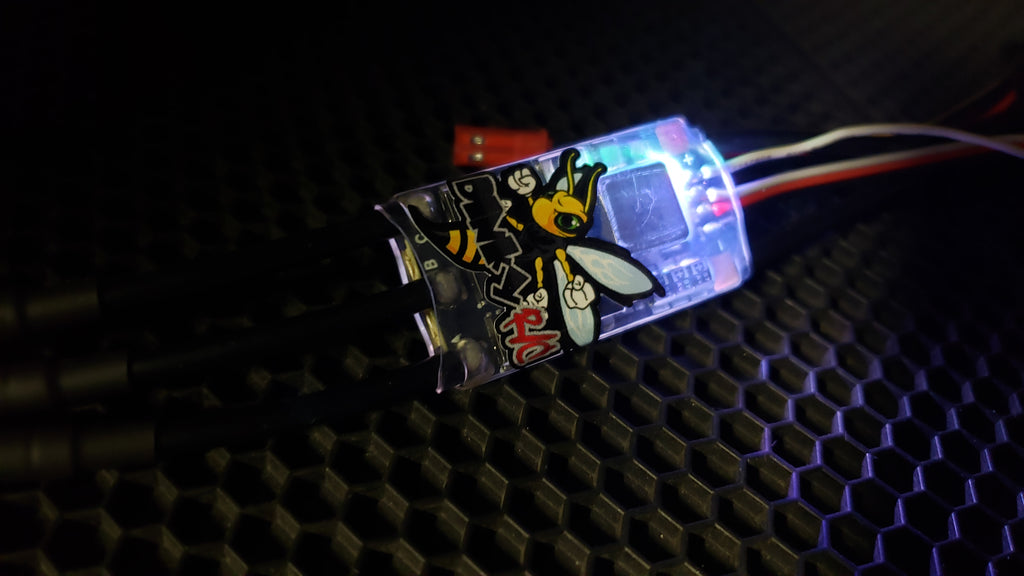

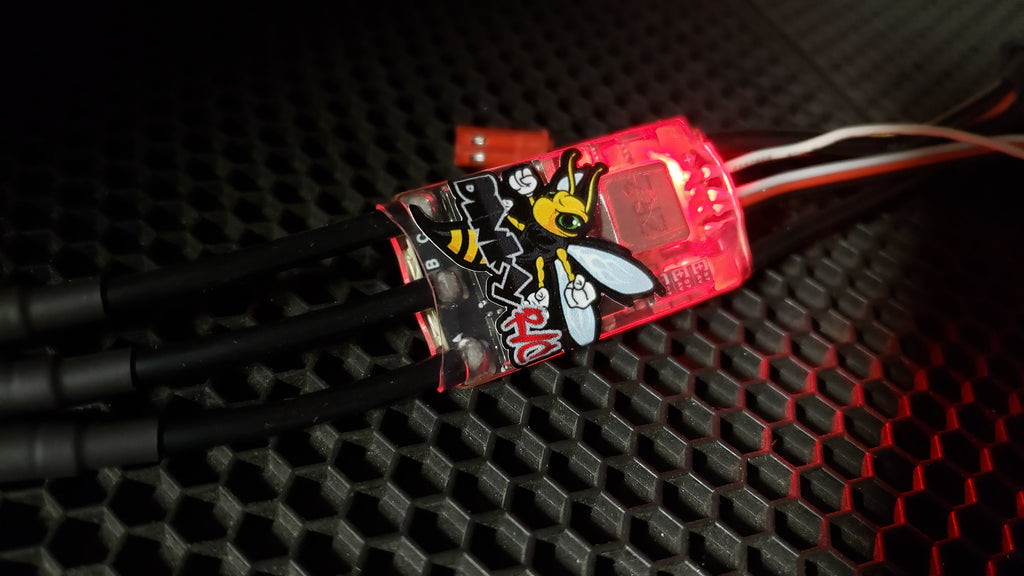

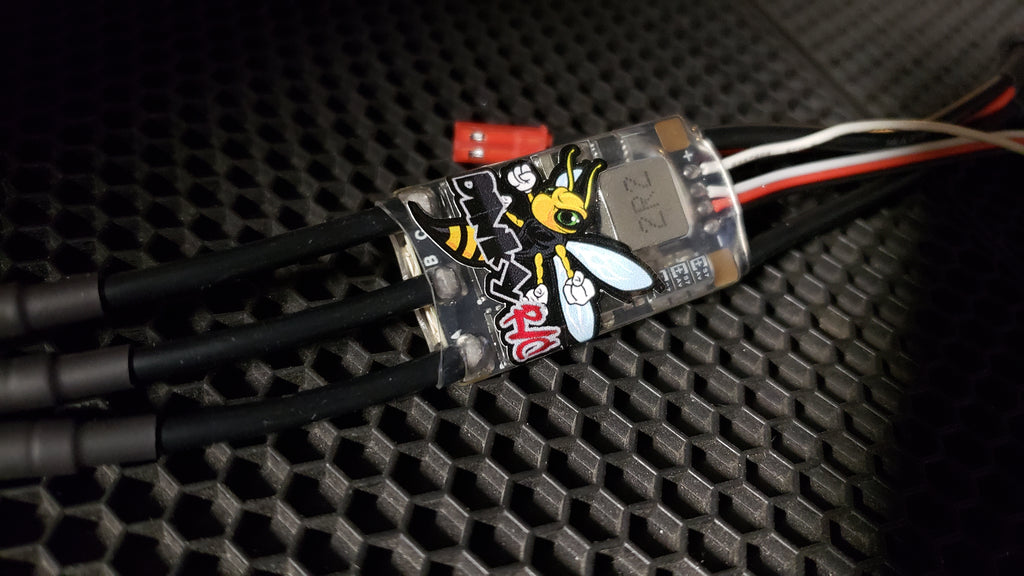

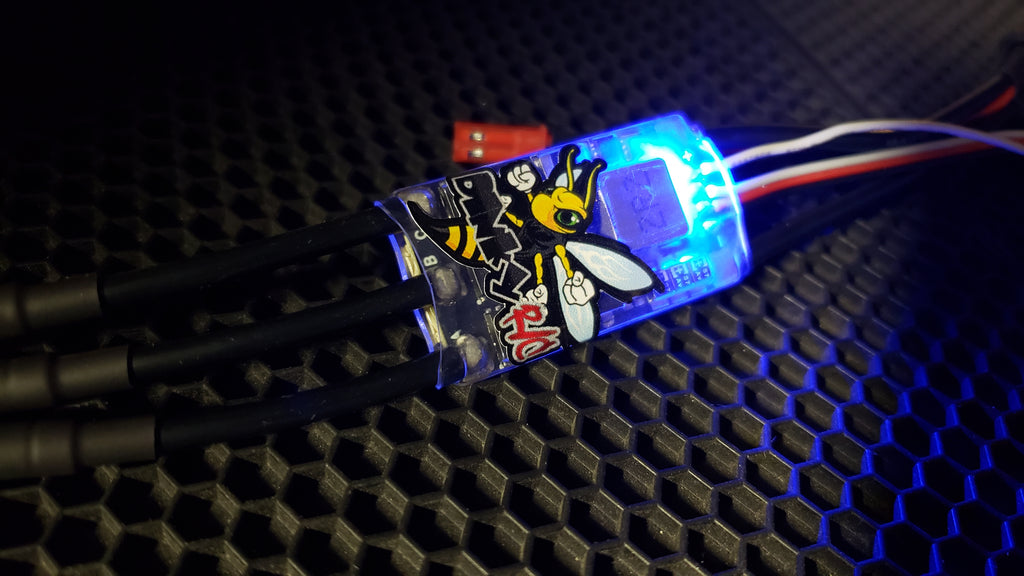

"D-Drive" V2 Pro 60amp ESC
An Evolution of ESCape32 technology has been realized by coming full circle in R/C motor control!
We are now able to control brushed, sensorless brushless,
and now brushless sensored motors with the new Hybrid-Drive 32bit capable hardware!
You'll be amazed by the refined feel & drivablity of ESCape32 firmware, utilizing the hardware to its fullest extent with its bare-metal programming and robust protection features.
Utilizing the G071 32bit chip, you're given the smoothest, most buttery control we've ever experienced.
Providing you with some of the most seamless transitions from sine mode to trap mode in the industry! This can easily be tuned by adjusting the "prot_stall" with your ESCape32 Wifi-Link. Allowing you to increase the current delivered during transition up to 8% during the motors first commutation into trap mode. Helping you to reach thru the RPM's, between sine and trap mode, even with higher kv motors.
With the ability to tune to YOUR driving style, and NOT just getting it to "Run right".
The development team at ESCape32 has spent countless hours fine tuning dozens of parameters to give you the best they can provide.
All at a price that's hard to beat, with all that it has to offer!
Your purchase of this ESC directly benefits the developers,
as these boards are engineered and created by the developers of ESCape32 themselves!
More powerful and versatile than it's D-Drive Pro 50amp predecessor, it now includes a built-in 10amp adjustable BEC from 5.5-8.4v.
Providing well enough power for your receiver, winch, and most all of your servo needs.
A direct power JST is provided for powering your direct power type servos. Please leave a note if you need two JST direct power leads.
TVS Diode provides voltage protection, helping to protect your other high performance equipment & servos.
Additionally, a single wire Telemetry lead can be added in the drop-down menu options to help keep track of all your data needs.
From temperature, Rx & Battery Voltage, Current Sensing, eRPM, & more,
it's yet another fantastic feature to help you climb to the top!
Directly compatible with our Wifi-Link, or other brands of Wifi-Links as well.
Discover even more abut ESCape32 Firmware by clicking here.
Or find the ESCape32 settings page under the "More" tab at the top right of the main page.
Drive yourself to the podium with confidence, with the new "D-Drive" V2 Pro 60amp ESC!
Visit ESCape32.org and show your appreciation, provide feedback, and support the project!
Early March Release!
Please Contact Us for Pre-order!
Specs
- 18th - 10th scale compatible
- ESCape32 Rev.13 Firmware (ESCAPE4)
- 60amp Continuous - 80amp Peak
- 2-4s capable (5s & 6S w/cap)
- 10amp Adjustable Built-in BEC 5.5, 6.5, 7.4, & 8.4v
- Plug n' Play w/XT60 or XT30
- 4mm Motor Plugs
- 14g silicone wire - Motor & Battery leads
- Direct power servo connection w/JST plug
- Overall ESC Dimensions: (L) 40mm x (W) 24mm x (H) 12mm
- Personalized customer service and setup assistance, to make sure you're rig gets up and running, and is tuned to your liking.
Includes
- D-Drive Pro V2 60amp ESC
- Matching Battery plug (XT60/XT30)
- 4mm Motor Plugs (Females installed, Males included)
- Extra 1/4" Heatshrink
- Built-in 10amp Adjustable BEC
- Dinky R/C Mini Decal Sheet
- Base tune for most sensorless motors (Wifi-Link recommended, but NOT included for further tuning)
